XZ600F Untergrundbohrmaschine Motor 600kN Hdd Maschine
Place of Origin:China
Brand Name:Rongchang Machinery
Minimum Order Quantity:1 Prozent
Price:Verhandlungsfähig
Payment Terms:L/C, T/T, usw.
Product Details
Hervorheben:
xz600f unterirdische Bohrmaschine
,600kn HDD-Maschine
,unterirdische Bohrmaschine -Motor
Product Description

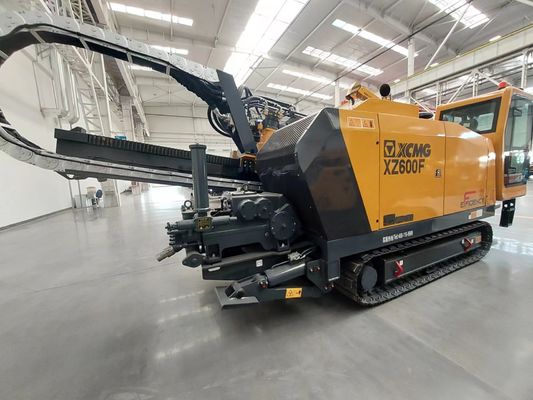

XZ600F Untergrundbohrmaschine Motor 600kN Hdd Maschine
| Projekt | Einheit | XZ600F |
| Motor | - | |
| Nennleistung | Leistung: | 194/2200 |
| Maximaler Schub und Rückziehkraft | kN | 600 |
| Maximaler Schub- und Zurückziehgeschwindigkeit | m/min | 55 |
| Drehmoment | N·m | 31000 |
| Höchstgeschwindigkeit | r/min | 140 |
| Höchstdurchfluss | L/min | 600 |
| größter Druck | MPa | 10 |
| Bohrrohr | mm × m | φ89 × 4,5/3 |
| Gewicht für das Heben | t | 2 |
| Hebemoment | - Ich weiß. | 4 |
| Höchstdurchdringungswinkel | - Nein. | 20 |
| Qualität | t | 16 |
| Abmessungen | mm | 9000 × 2280 × 2640 |
| Anmerkung | - | Optional: 1. Schlamm-Anti-Eis; 2. Leistungssteigerung; 3. 800L Schlammpumpe; |
